DEFENSE

Mine Blast Attenuating Seat

Mine Blast Attenuating seat(Loader seat) | NAKWON T&A

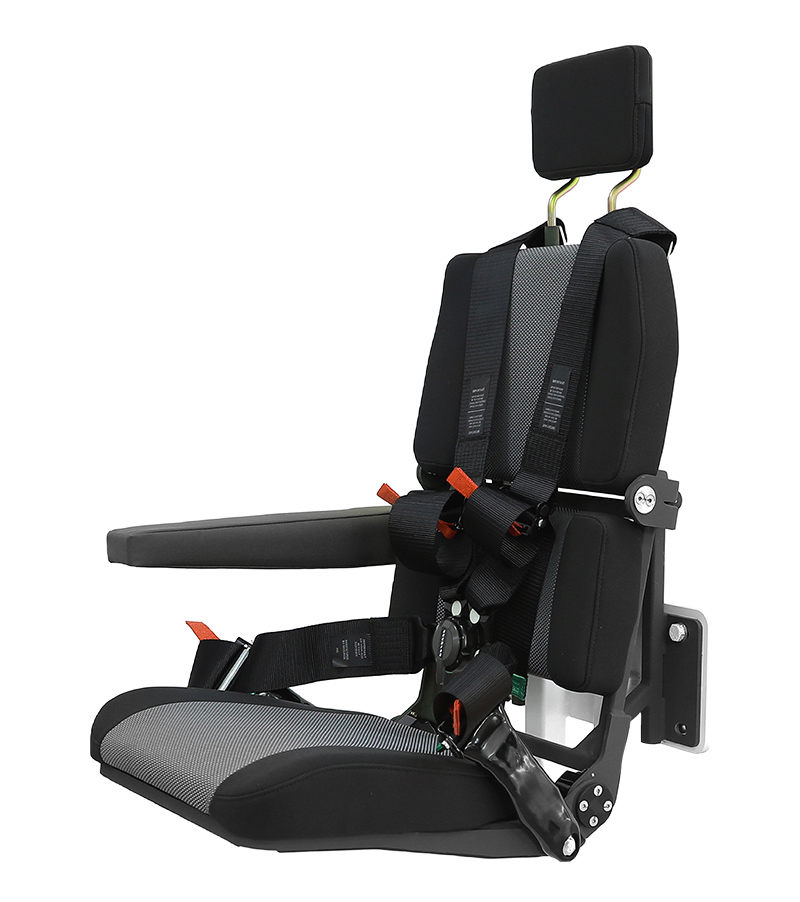

Loader Seat

CONTACT US

  • Seat
    Specification

    · Back Rest Folding: 90 Deg
    · Head Rest Height Adjustment: 8-Step
      15mm (Equal Interval )105mm
    · Fabric cover: flame retardant material
    · Seat Belt : 4-Point Seat Belt
    · Arm Rest Folding (Adjustable 90˚)
    · Mounting Options : Wall

  • Seat Size

    1) 869.0 X 408.7 X 525.9 mm (Folding)
    2) 974.0 X 621.6 X 525.9 mm (Max)

  • Weight

    23.6kg

  • Safety
    Standard

    1) FMVSS 302
    2) ECE No.14 M3 PASS
    3) Vibration (MIL-STD-810G) PASS
    4) STANAG 4569 ED.2, AEP 55 Vol.2
    5) DRI ≤ 17.7(PASS)

  • Application
    Vehicle

    30mm

30mm Anti-Aircraft Gun Wheeled Vehicles

Air Defense C2A System, Local Air Defense Radar, Synchronized Operation with Airfield Anti-Aircraft Control System
Loaded with Electron Optical Targeting Systems (EOTS) and a Visual Targeting System enabling Automatic Tracking and Self-Targeting Capabilities
Application of wheeled platform enables mobile and localized support for troops

SEAT SPECIFICATION

  • Shock Absorbing Seats(Loader seat) | NAKWON T&A Height adjustment
  • Shock Absorbing Seats(Loader seat) | NAKWON T&A Arm Rest Folding : 90 Deg
  • Shock Absorbing Seats(Loader seat) | NAKWON T&A Seat Belt : 4 Point Seat Belt

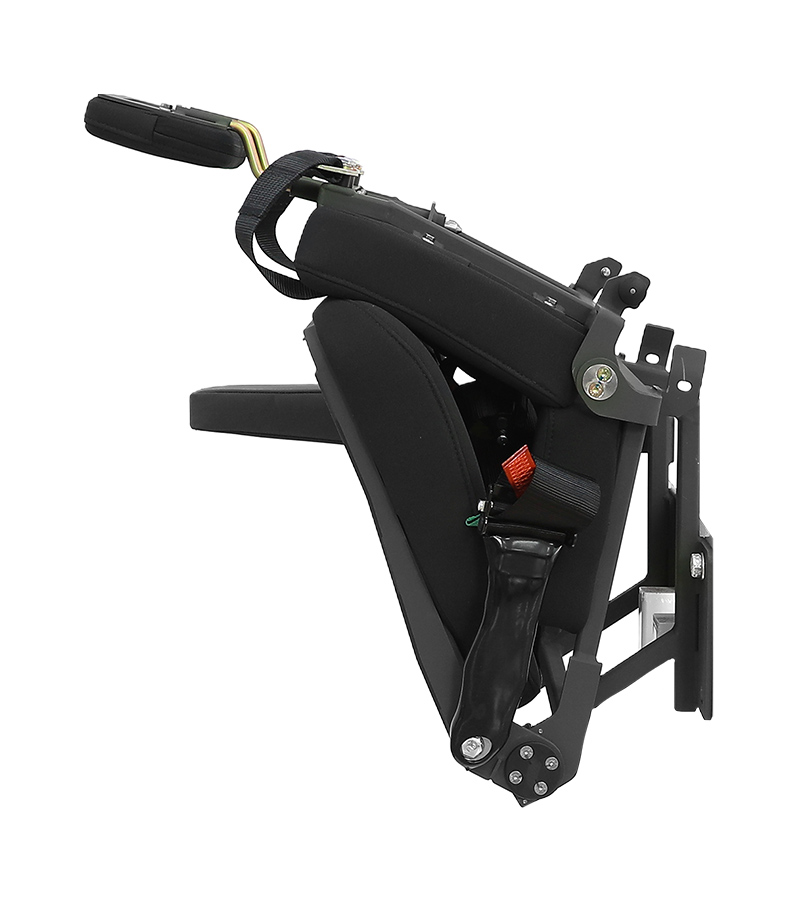

  • Shock Absorbing Seats(Loader seat) | NAKWON T&A Back Rest Folding
