DEFENSE

Mine Blast Attenuating Seat

Mine Blast Attenuating seat(Infantry seat) | NAKWON T&A

Infantry Seat

CONTACT US

  • Seat
    Specification

    · Back Rest Folding : 90 Deg
    · Folding Function (Adjustable 60˚)
    · Head Rest Height adjustment
    · Fabric cover: flame retardant material
    · Seat Belt : 4-Point Seat Belt
    · Foot Rest Folding (Length Optional)
    · Mounting Options : Wall

  • Seat Size

    1) 960.4 X 408.7 X 432.8 mm (Folding)
    2) 1,064.4 X 667.2 X 432.8 mm (Max)

  • Weight

    23.5kg

  • Safety
    Standard

    1) FMVSS 302
    2) ECE No.14 M3 PASS
    3) Vibration (MIL-STD-810G) PASS
    4) STANAG 4569 ED.2, AEP 55 Vol.2
    5) DRI ≤ 17.7(PASS)

  • Application
    Vehicle

    K806(WAV)

    K808(WAV)

6x6 WAV(K806, Armored Personnel Carrier)

The 6×6 wheeled armored vehicle is a basic vehicle designed for mobile striking and protecting important facilities during rear area operations. It consists of a 420 ps diesel engine from Hyundai Motors , a 7-speed transmission and a 2-speed secondary transmission.
The MINE BLAST ATTENUATING SEAT for crew protection is built-in, and it has been developed with an ergonomic design considering the crew operation and the expandability of the belonging vehicle, and is currently in mass production.

8x8 WAV(K808, Infantry Combat Vehicle)

The 8x8 Wheeled Armored Vehicle is an infantry combat vehicle that is fitted with a 420 ps diesel engine developed by Hyundai Motors, 7-speed transmission and 2-mode secondary transmission. Capable of moving on both land and water and built-in MINE BLAST ATTENUATING SEAT also it has been engineered to maximize crew operability with its ergonomic design and scalability to family vehicles.

SEAT SPECIFICATION

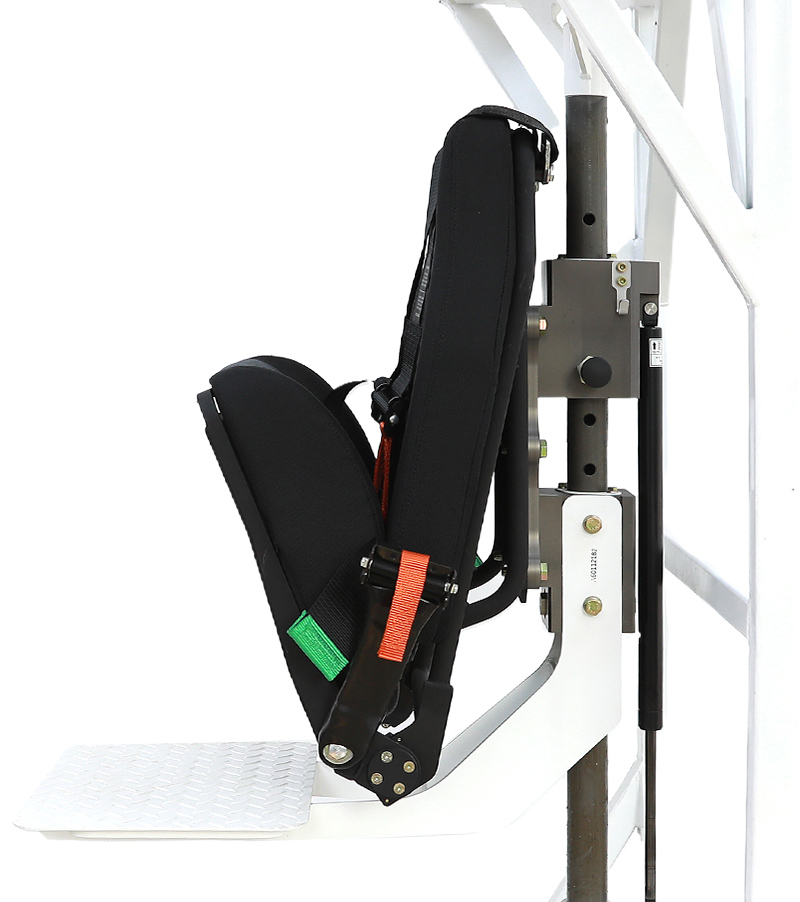

  • Blast&IED Protection seat(Infantry seat) | NAKWON T&A Height adjustment

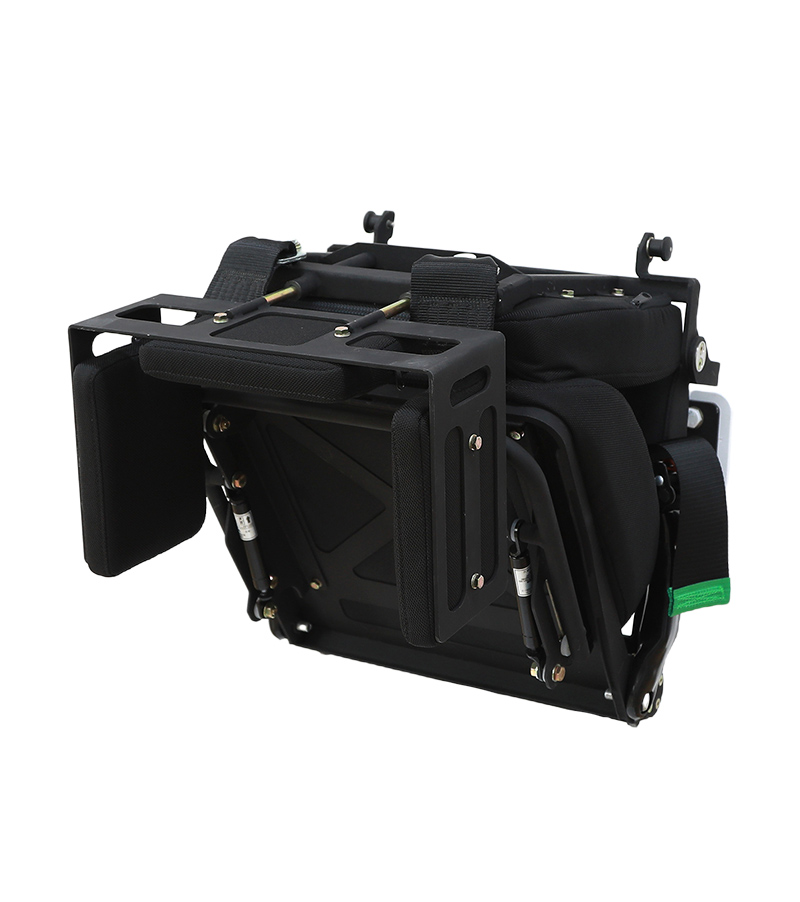

  • Blast&IED Protection seat(Infantry seat) | NAKWON T&A Seat Folded
  • Blast&IED Protection seat(Infantry seat) | NAKWON T&A Mounting Options : Wall
  • Blast&IED Protection seat(Infantry seat) | NAKWON T&A Back Rest Folding : 90 Deg
